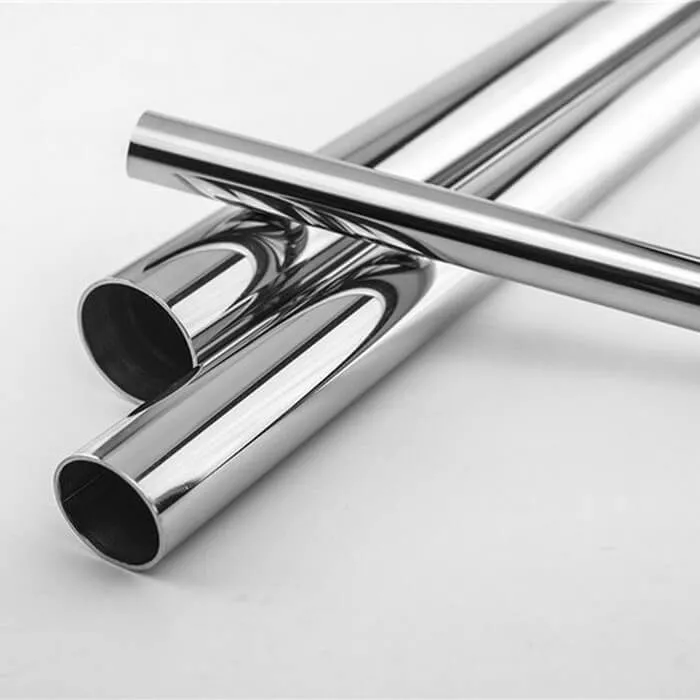

316 316L stainless steel pipe
Type 316 is generally known to be durable, clean, easy-to-fabricate, weldable and has a good finish. It has so many different benefits that even though Type 316 costs a little more upfront, it can improve the functional lifespan of the steel products by years which means it can save companies vast amounts of money in the future.
Advantages of 316 Stainless Steel
– It has excellent weldability
– It has great machinability
– Corrosion resistance is good
– Excellent pitting resistance
– The austenitic structure gives it excellent toughness, even in cryogenic temperatures
– Considered resistant to potable water
– Superior Resistance to Chloride
– Resistance to Corrosive Chemicals: The addition of molybdenum increases the metal’s resistance to acetic, sulfuric, and sulphurous acids as well as many industrial chemicals and solvents. These types of corrosive process chemicals are used to make a wide variety of products including inks, textiles, photographic chemicals, paper, textiles, rubber, and bleaches.
– Better Resistance to Cracking & Pitting: 316 Stainless Steel offers a reduced risk to stress corrosion cracking, improved creep resistance, and better protection against pitting and crevice corrosion
Applications of 316 Stainless Steel
– Food preparation surfaces, equipment, and appliances, particularly in chloride environments
– Laboratory benches & equipment
– Coastal architectural panelling, railings & trim
– Boat fittings
– Chemical containers, including for transport
– Heat Exchangers
– Woven or welded screens for mining, quarrying & water filtration
– Threaded fasteners
– Springs
– The storing and handling of acetic acid
– It’s used in the pulp and paper industry to avoid iron contamination of the product, specifically Type 316 is used extensively in the paper machine.
– Pressure vessels
– Furnace parts
Product Parameters
Commodity | Stainless Steel Pipe/Tube |
Material Grade | 201,304,310S,310,309,309S,316,316L,316Ti,317,317L,321, 321H,347,347H,304,304L, 302,301,202,403,405,409,409L,410,410S,420,430,631,904L,etc |
Type | Seamless and welding pipe/tube |
Shape | Round pipe, Square pipe, Rectangular pipe |
Surface | Pickling/Polished/Satin/Hairline/Mirror Finish |
Outside diameter | 6mm-630mm(seamless pipe) 9.5mm-1200mm(welding pipe) or as customer's requirement |
Wall thickness | 2.5mm-30mm(seamless pipe) 20.5mm-20mm(welding pipe) or as customer's requirement |
Length | 6 Meters and as customer's requirement |
Standards | AISI ASTM JIS SUS and GB |
Applications | Kitchenware, utensils, tableware, household appliances, construction decoration and daily products |
Packing | Seaworthy wooden pallet or according to client's requirement |
MOQ | 1 ton |
Chemical Properties | |||||||||||
UNS | ASTM | EN | JIS | C% | Mn% | P% | S% | Si% | Cr% | Ni% | Mo% |
S31600 | 316 | 1.4401 | SUS316 | ≤0.08 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
S31603 | 316L | 1.4404 | SUS316L | ≤0.03 | ≤2.00 | ≤0.045 | ≤0.03 | ≤0.75 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
Material Properties | |||||
Type No. | Tensile Strength, ksi | Yield Strength, ksi | Elongation in 2 inches, % | Reduction of Area, % | Brinell Hardness |
316 | 85 | 35 | 60 | 70 | 150 |
316L | 78 | 30 | 55 | 65 | 145 |
